5L Rotary Evaporator

5L rotary evaporator is one device that you can find in chemical labs that are used to ensure efficiently and also efficient removal of solvents by a process that is known as evaporation. It can also be used for molecular cooking for the preparation of extracts and also distillates.

This is the structure that you will have.

5L rotovap

Send Inquiry Now!

The Structures of 5L Rotary Evaporator

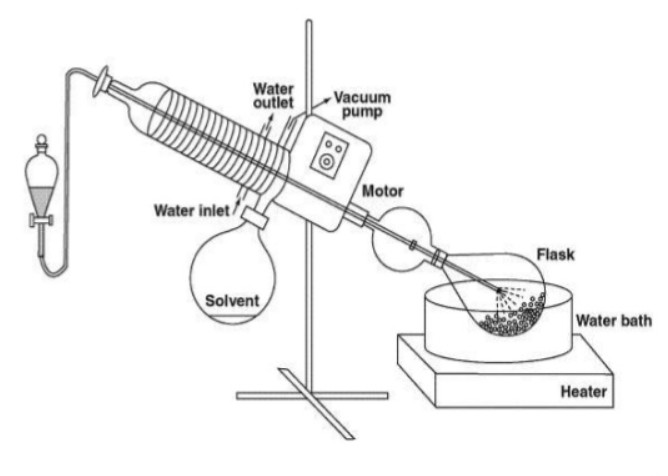

5L rotary evaporator structure

  1. At the first point, you will find a one-piece condenser that has been made specifically to ensure that there is no vacuum leakage.
  2. There is also a charge valve that allows for control of the distillate
  3. The quick opening ball milling clip is one that will allow easy removal of the collection from the flask.
  4. The collection flask is just below there to hold the collection collected
  5. There is stainless steel found both in the frame and also the stainless steel base (SUS 304). They ensure that the rest of the items are held well in place
  6. The speed controller is responsible for controlling the speed of rotation of the rotary flask. It has been designed with a digital display of data.
  7. The vacuum meter below ensures correct readings
  8. Induction motor that is durable
  9. It has a flange connection that has been designed with a PTFE gasket in the inside part that ensures better sealing
  10. There is a rotary flask
  11. The heating bath that heats up the rotary flask
  12. Temperature controller that has been designed with minimum overshoot and also over-temperature alert.
  13. Hand lift or motor lift will set the height of the heating bath in a flexible manner

Send Inquiry Now!

The Specifications of WKIE Lab Small Size Rotovap

ModelRE-201DRE-301RE-501
Glass MaterialGG-17GG-17GG-17
Support MaterialStainless SteelStainless Steelstainless steel
Shell MaterialAntisepsis Plastic Spraying 270*270*195mmAntisepsis Plastic Spraying 290*296*240mmAntisepsis Plastic Spraying 310*320*240mm
Inner Container MaterialStainless Steel 250*140mmStainless Steel 255*170mmstainless steel 280*170mm
Baseboard Size280*330mm350*330mm350*330mm
Volume of Recycling Bottle1L 24#Standard Aperture2L 35# ground aperture3L 35# ground aperture
Vacuum Degree0.098Mpa0.098Mpa0.098Mpa
Rotating Power40W40W40W
Rotating Speed0-120rpm0-120rpm0-120rpm
Heating Power1.5KW2KW2KW
Voltage/Frequency (V/Hz)220V/50Hz220V/50Hz220V/50Hz
Up and Down Distance120mm120mm120mm
Shape Size(mm*mm*mm)700*440*885700*440*885700*335*1009mm
Package Size(mm*mm*mm)590*460*460 0.12 m31000*460*460 0.12 m31040*620*410 0.26 m3
Package Weight (KG)213838
Speed Adjustment ModeElectrodeless Speed RegulationElectrodeless Speed RegulationElectrodeless Speed Regulation
Rotate Speed Display ModeDigital DisplayDigital DisplayDigital Display

Send Inquiry Now!

The Features of 5L Rotary Evaporator

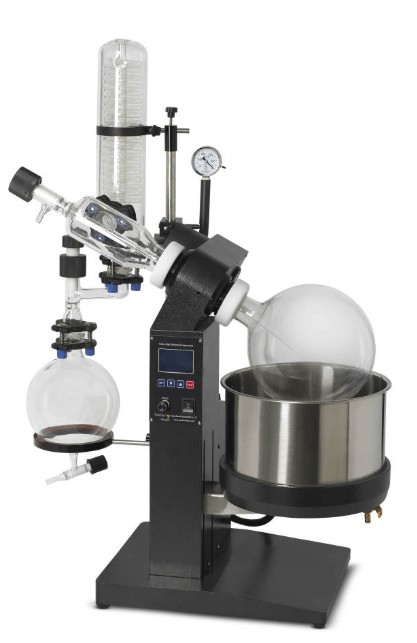

5L rotary evaporator features

It has been designed with a solvent resistant PTFE and some Viton gaskets. These two are very vital because they all ensure that you are able to have a long time use and operation of the item without it getting problems.

Designed with a specialized motor that is also very compact. The intermeshed worm and worm gear are vital in providing you with previse driving so that you have a quiet and vibration-free operation.

There is a downward condensing vacuum which has a unique connection design that will make sure that there is a safe vacuum operation at all times.

Fitted with a motorized water bath that will the best and easiest kind of lifting so that you have precise control

The visual operation is easy and also straight forward. In addition to it, you will also find the addition of the digital speed and also the temperature display apparatus.

There is a PID temperature controller that will ensure that at the time of usage, you get the best and also accurate kind of temperature at all times.

>> Rotary Evaporation Technique

Send Inquiry Now!

The Applications of 5L Rotary Evaporators

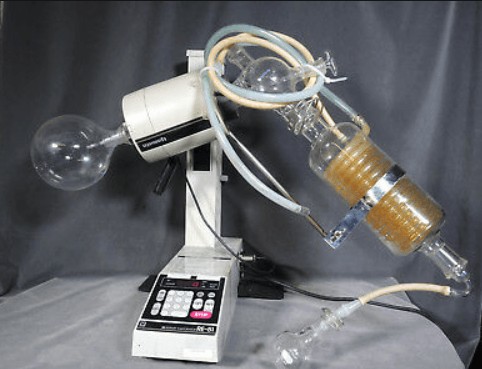

5L rotovap applications

The rotovapor is one device that can be used in a wide variety of places where it is needed. For instance, you can find it being used in the medical world by both doctors and also students.

Other places where you will find it being used include chemical engineering sector, biological labs for assisting in scientific research and also production. It is used in this place because of evaporation, drying, crystallization and also the process of solvent recovery. That is why you will find it able to handle reaction solvents in the best manner.

It can also be used in the laboratory section. That will be for teaching purposes. That is why you will realize that during the evaporation process, the evaporation flask will be placed on the desk and it will not either roll or even break in an easy manner.

The rotary apparatus has also spread to be used in the molecular cooking industry, known as gastronomy. This is a type of science that applies both the physical and cooking principle.

Molecular type of cooking has also turned to use that kind of brand. This is an innovative type of cooking that combines technology and the skill of psychological kind of cooking. What you are needed to use is rotovap and you will have evaporated liquid without the heating method. Many have tried to compete with it but none has managed to succeed in any way.


Want to know the price about 5L Rotary Evaporator?  Take your free quote now below:
